ESP32-P4-WIFI6 Dev Kit Based on ESP32-P4 and ESP32-C6, Support Wi-Fi 6 & BLE 5, Onboard MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF Card Slot, PoE Module Header, Microphone, etc.
Product details
| Management number | 217004316 | Release Date | 2026/04/19 | List Price | US$10.75 | Model Number | 217004316 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

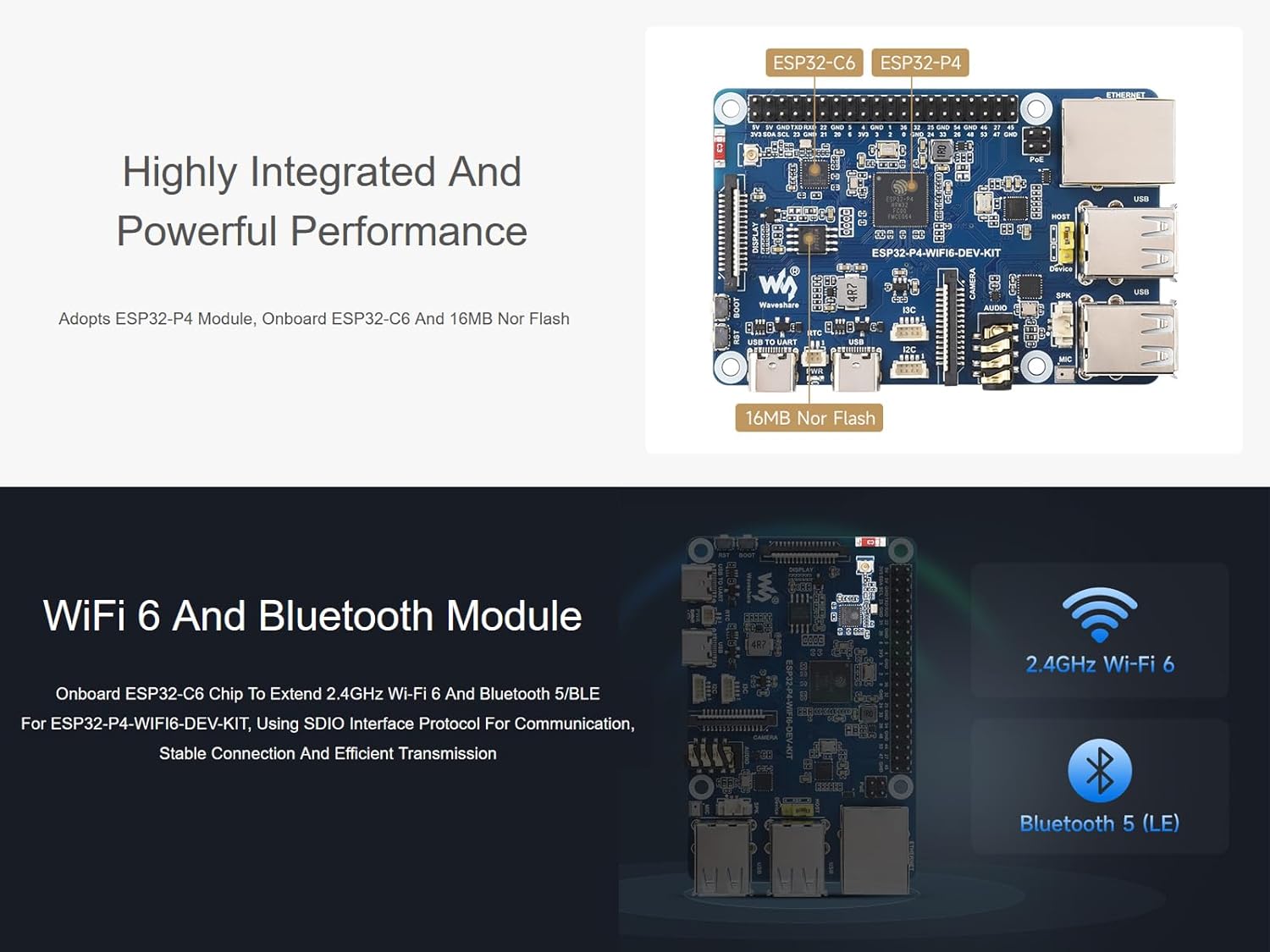

Overview This product is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and SDIO Host 3.0 for high-speed connectivity. The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Features High-performance MCU with RISC-V 32-bit dual-core and single-core processors 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-RAM, 8 KB TCM 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder Supports AI Speech Interaction, allows access to online large model platforms, etc. Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc. Reserved PoE Module header, more flexible for power supply Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation Package Content ESP32-P4-WIFI6-DEV-KIT x 1 8Ω 2W speaker x 1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
- ESP32-P4-WIFI6-DEV-KIT high-performance development board, based on ESP32-P4 and ESP32-C6, with RISC-V 32-bit dual-core and single-core processors, supports 2.4GHz Wi-Fi 6 and Bluetooth 5 / BLE 5
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-R-A-M, 8 KB TCM. 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
- Supports AI speech interaction, allows access to online large model platforms. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

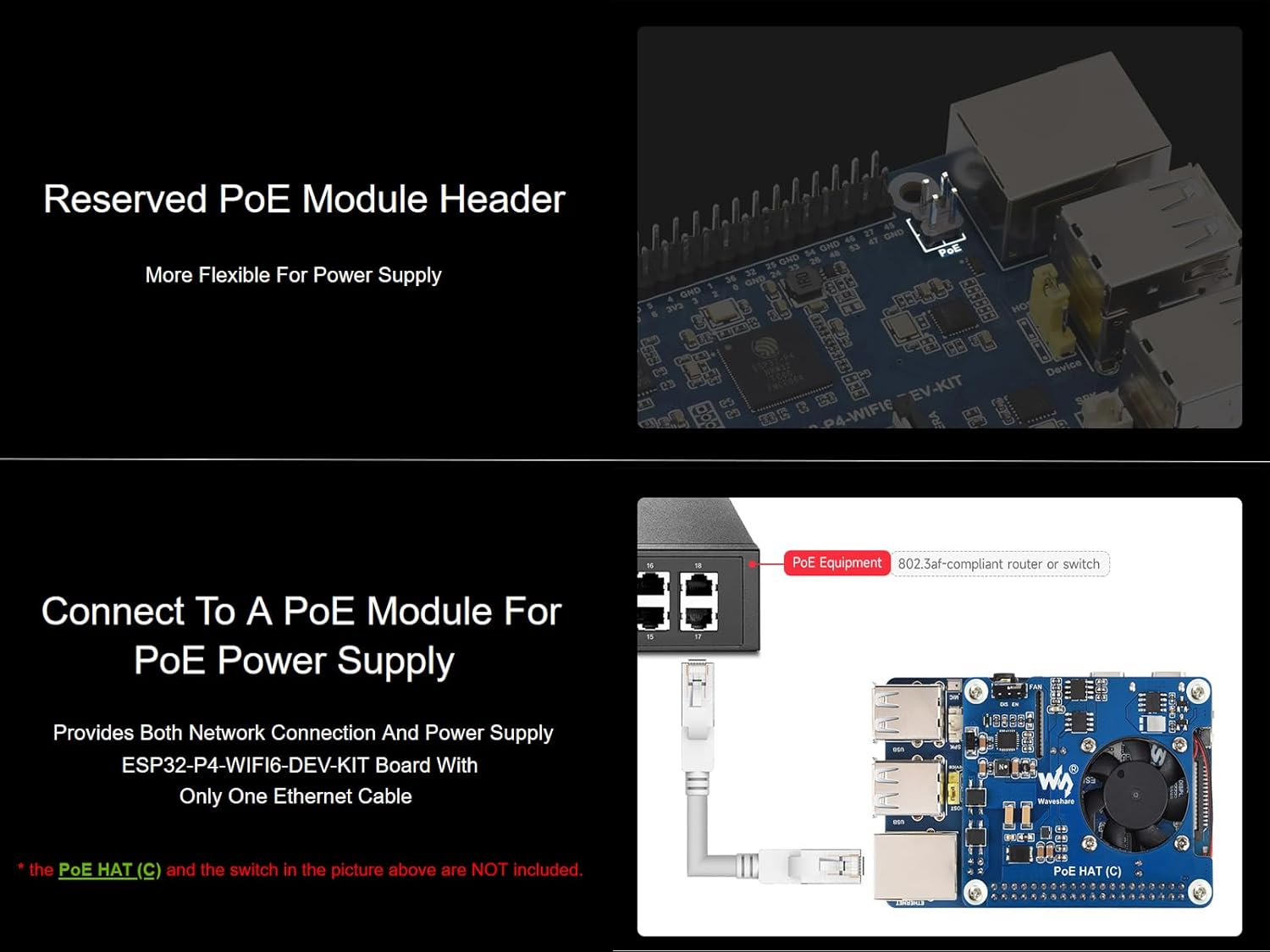

- Rich human-machine interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc. Reserved PoE Module header. Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
| UPC | 790885236808 |
|---|---|
| Brand | waveshare |
| Model Name | ESP32-P4 WIFI6 Dev Kit |
| Unit Count | 1.0 Count |
| Chipset Type | ESP32-P4 |
| Manufacturer | Waveshare |
| Model Number | ESP32-P4 |
| Number of Ports | 8 |
| Total Usb Ports | 1 |
| Compatible Processors | ESP32-P4 |
| RAM Memory Technology | PSRAM |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 32 MB |
| Ram Memory Maximum Size | 32 MB |
| Number of Ethernet Ports | 1 |
| Main Power Connector Type | PoE connector |
